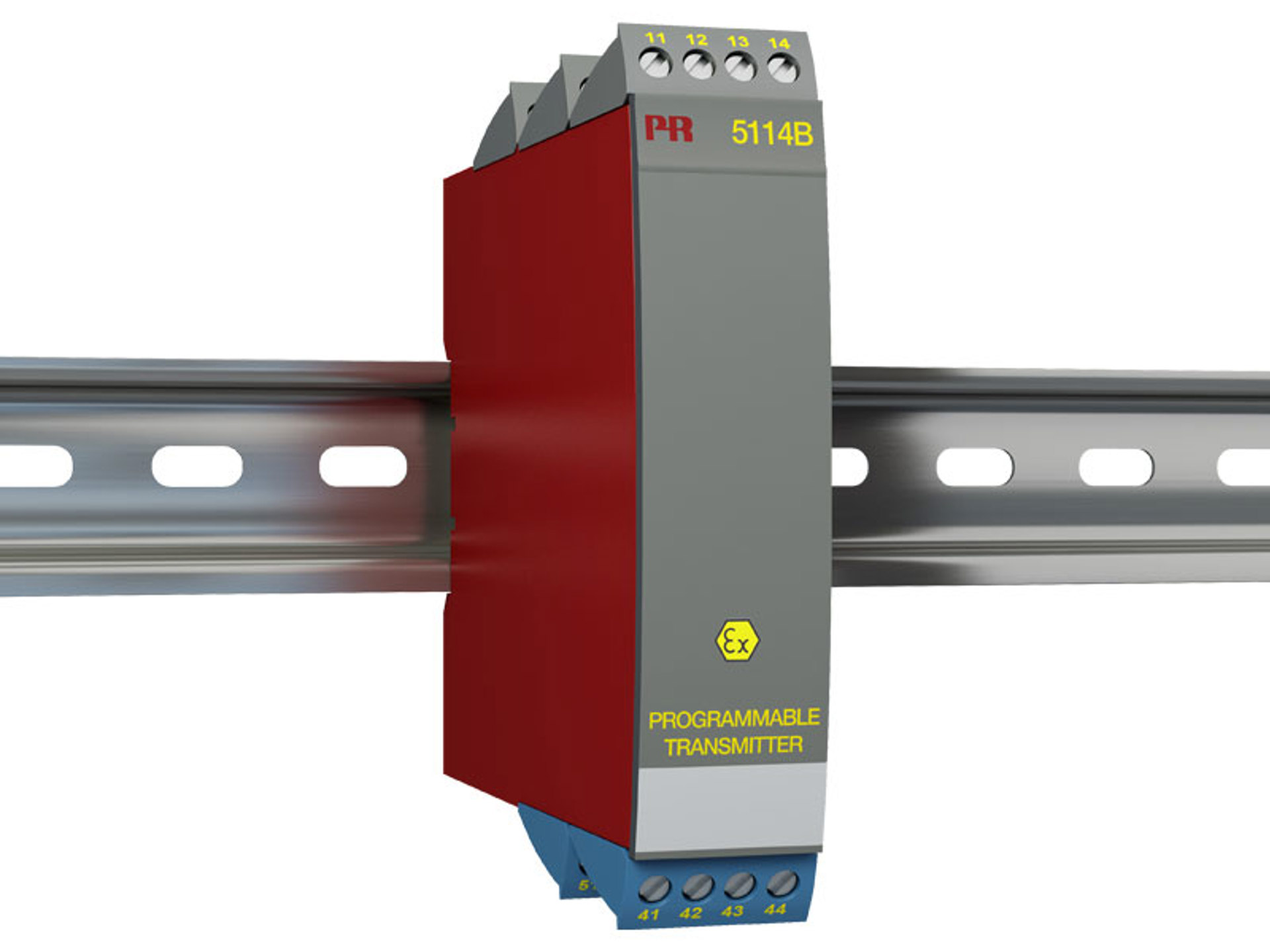

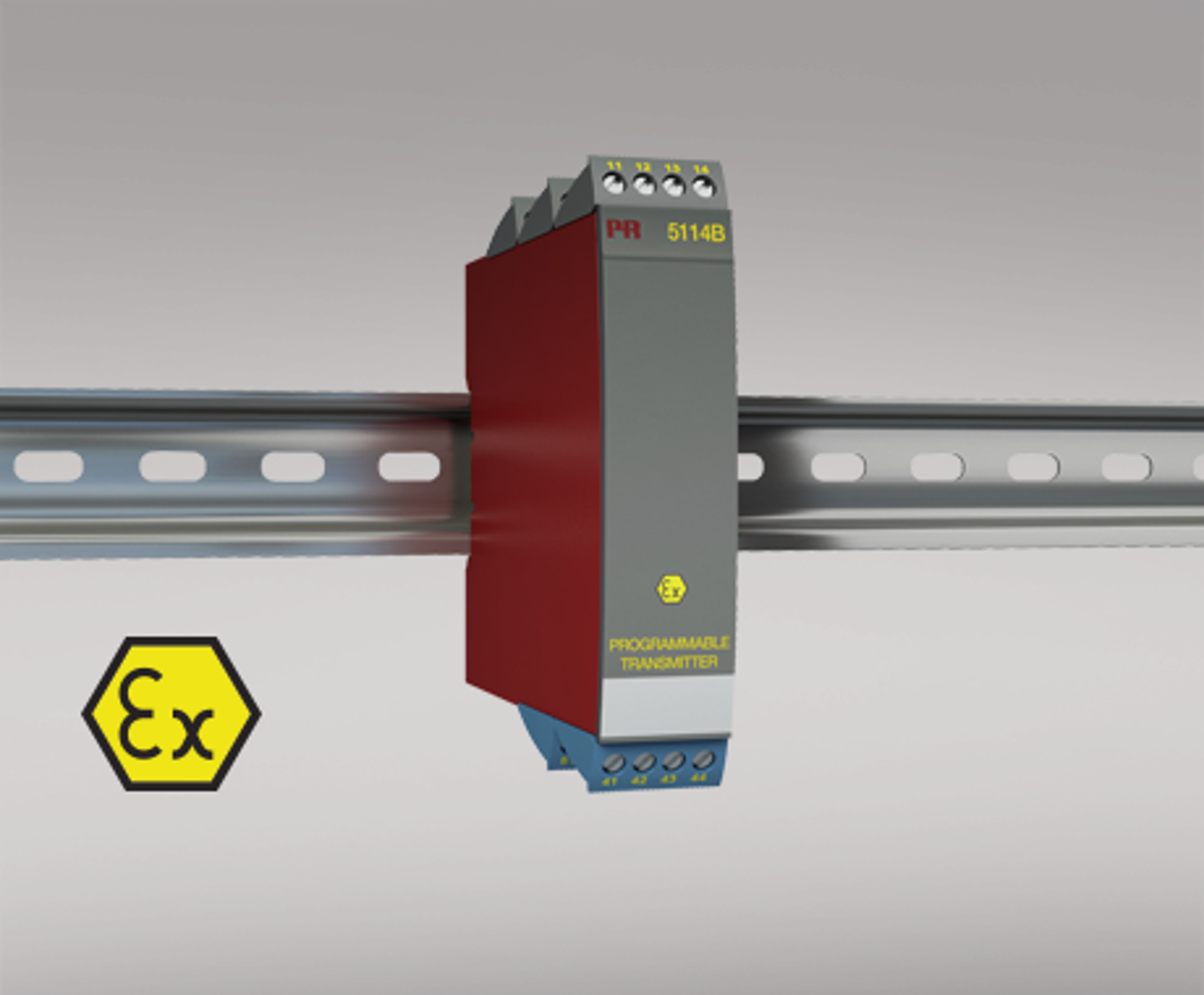

Programmable transmitter
5114B

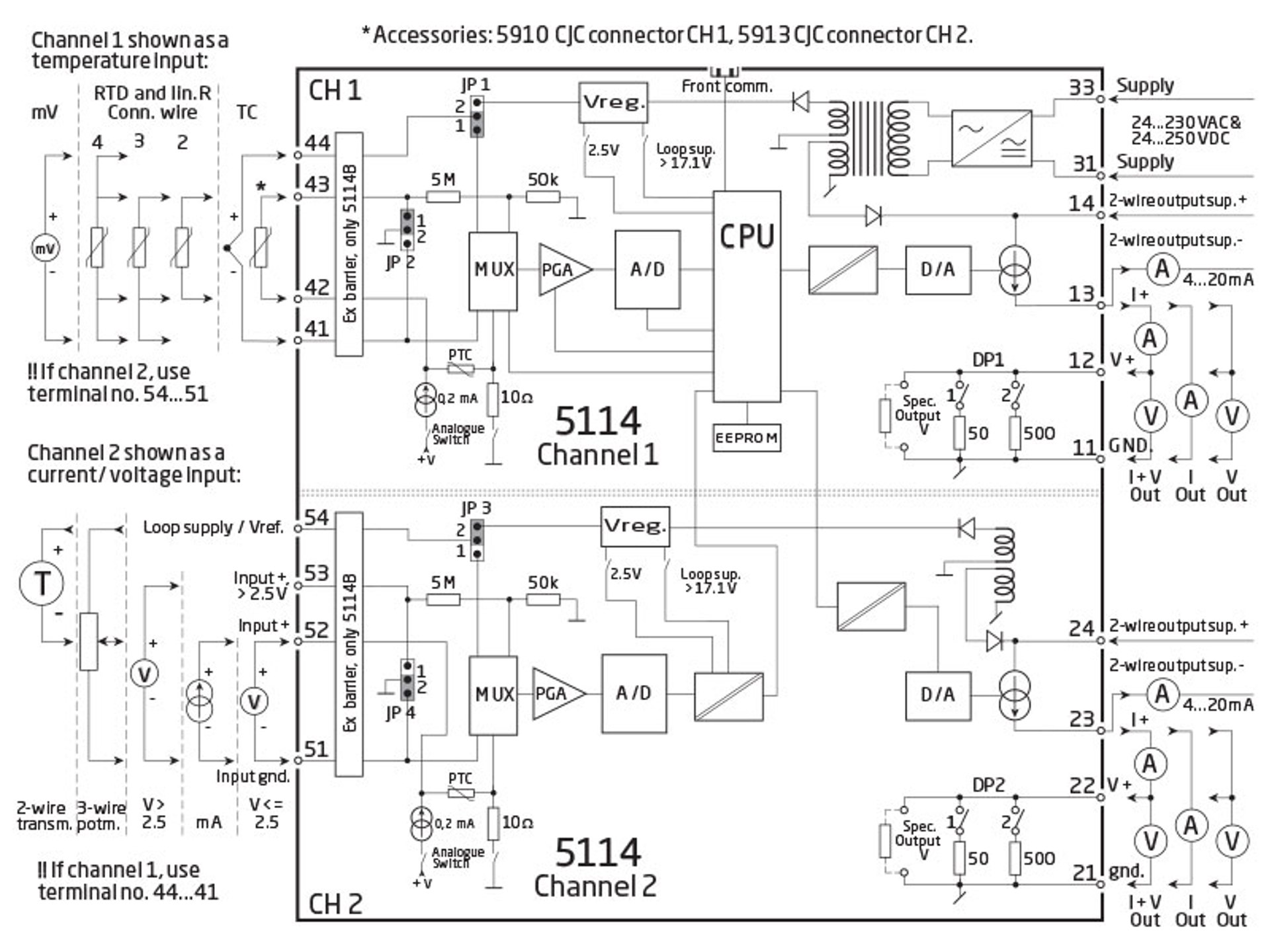

- Input for RTD, TC, mV, linear resistance, mA, and V
- 3-port 3.75 kVAC galvanic isolation
- Current and voltage output
- Universal voltage supply
- 1- and 2-channel versions
- Loop supply > 17.1 V in Ex / I.S. zone 0
Advanced features
- The 5114 transmitter can be configured using the PReset software and the Loop Link communications unit.
Application
- Jumper selectable inputs for current/voltage or temperature.
- Programmable current (0...100 mA) and voltage (0...250 VDC) inputs.
- Linearized, electronic temperature measurement.
- Conversion of linear resistance variation e.g, from solenoids and butterfly valves or linear movements with attached potentiometer.
- 17.1 VDC loop and 2.5 VDC potentiometer supplies.
- Automatic 4- / 3-wire or programmable 2-wire cable compensation.
- Configurable sensor error detection including NAMUR NE43.
Technical characteristics
- Active or Passive current output and selectable voltage output.
- Separation of circuits in PELV/SELV installations.
- I.S. barrier for temperature sensors, potentiometers, and current / voltage signals.
- I.S. barrier with I.S. power supply for 2-wire transmitters in zone 0, 1, 2, 20, 21 and 2.
Note
- Not suitable for new installations requiring certification to the latest ATEX standards - see ATEX certificate DEMKO 99ATEX124571 and EU Declaration of Conformity for details.
Ficha técnica y manuales
Ficha técnica
- 5114B.pdf
- Última versión
Manuales
- 5114V108_UK.pdf
- 5114V107_UK.pdf
- 5114V106_UK.pdf
- 5114V105.pdf
- Versiones anteriores
- Última versión
Manuales en ruso
- 5114V108_RU.pdf
- 5114V107_RU.pdf
- 5114L106_RU.pdf
- Versiones anteriores
- Última versión
Homologaciones y certificados
Certificado ATEX
- 5114B.pdf
- Última versión
Certificado marina DNV
- DNV_2231_41xx_51xx_53xx.pdf
- Última versión
Declaración EAC
- EAC-Declaration.pdf
- Última versión
Certificado EAC
- EAC_Ex.pdf
- Última versión
Metrology Pattern Approval (MPA), Russia
- MPA_Russia.pdf
- Última versión
Documentación complementaria
Declaración UE de conformidad
- 5114DoC_EU_103_UK.pdf
- 5114DoC_EU_102_UK.pdf
- 5114DoC_EU_101_UK.pdf
- 5114DoC_EU_100_UK.pdf
- Versiones anteriores
- Última versión
Configuraciones por defecto
- PR_default_configurations.pdf
- Última versión
Nota de seguridad
Nota de seguridad
- SN5000-2_109_2220.pdf
- SN5000-2_107_1924.pdf
- SN5000-2_106_1825.pdf
- SN5000-2_105_1811.pdf
- SN5000-2_104_1725.pdf
- SN5000-2_103_1625.pdf
- SN5000-2_102_1613.pdf
- SN5000_101_1450.pdf
- Versiones anteriores
- Última versión
Formulario de pedido
Environmental Conditions
| Operating temperature | -20°C to +60°C |
| Calibration temperature | 20...28°C |
| Relative humidity | < 95% RH (non-cond.) |
| Protection degree | IP20 |
Mechanical specifications
| Dimensions (HxWxD) | 109 x 23.5 x 130 mm |
| Weight approx. | 225 g |
| DIN rail type | DIN EN 60715/35 mm |
| Wire size | 0.13...2.08 mm2 AWG 26...14 stranded wire |
| Screw terminal torque | 0.5 Nm |
| Vibration | IEC 60068-2-6 |
| 2...13.2 Hz | ±1 mm |
| 13.2...100 Hz | ±0.7 g |
Common specifications
Supply |
|
| Supply voltage, universal | 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC |
| Fuse | 400 mA SB / 250 VAC |
| Max. required power | 2.1 W / 2.8 W (1 / 2 ch.) |
| Max. power dissipation | 2.0 W |
Isolation voltage |
|
| Isolation voltage, test / working | 3.75 kVAC / 250 VAC |
| PELV/SELV | IEC 61140 |
Response time |
|
| Temperature input, programmable (0...90%, 100...10%) | 400 ms...60 s |
| mA / V input (programmable) | 250 ms...60 s |
Auxiliary supplies |
|
| 2-wire supply (pin 44...42 and 54...52) | 28...17.1 VDC / 0...20 mA |
| Programming | Loop Link |
| Signal / noise ratio | Min. 60 dB (0...100 kHz) |
| Accuracy | Better than 0.05% of selected range |
| Updating time |
115 ms (temperature input)
75 ms (mA / V / mV input) |
| Signal dynamics, input | 22 bit |
| Signal dynamics, output | 16 bit |
| Auxiliary voltages: Reference voltage | 2.5 VDC ±0.5% / 15 mA |
| EMC immunity influence | < ±0.5% of span |
| Extended EMC immunity: NAMUR NE21, A criterion, burst | < ±1% of span |
Input specifications
Common input specifications |
|
| Max. offset | 50% of selected max. value |
RTD input |
|
| RTD type | Pt100, Ni100, lin. R |
| Cable resistance per wire | 10 Ω (max.) |
| Sensor current | Nom. 0.2 mA |
| Effect of sensor cable resistance (3-/4-wire) | < 0.002 Ω / Ω |
TC input |
|
| Thermocouple type | B, E, J, K, L, N, R, S, T, U, W3, W5, LR |
| Cold junction compensation (CJC) | < ±1.0°C |
| Sensor error current | Nom. 30 μA |
| Sensor error detection | Yes |
Current input |
|
| Measurement range | 0...100 mA |
| Min. measurement range (span) | 4 mA |
| Input resistance: Supplied unit | Nom. 10 Ω + PTC 10 Ω |
| Input resistance: Non-supplied unit | RSHUNT = ∞, VDROP < 6 V |
Voltage input |
|
| Measurement range |
0...250 VDC
-150...+150 mV |
| Min. measurement range (span) | 5 mV |
| Input resistance |
Nom. 10 MΩ (≤ 2.5 VDC)
Nom. 5 MΩ (> 2.5 VDC) Nom. 10 MΩ (mV input) |
Output specifications
Current output |
|
| Signal range | 0...20 mA |
| Min. signal range | 10 mA |
| Load (@ current output) | ≤ 600 Ω |
| Load stability | ≤ 0.01% of span / 100 Ω |
| Current limit | ≤ 28 mA |
| Sensor error indication | Programmable 0...23 mA |
| NAMUR NE43 Upscale/Downscale | 23 mA / 3.5 mA |
Passive 2-wire mA output |
|
| Signal range | 4...20 mA |
| Load stability | ≤ 0.01% of span / 100 Ω |
| Max. external 2-wire supply | 29 VDC |
| Effect of external 2-wire supply voltage variation | < 0.005% of span / V |
Voltage output |
|
| Signal range | 0...10 VDC |
| Min. signal range | 500 mV |
| Load (@ voltage output) | ≥ 500 kΩ |
| of span | = of the presently selected range |
Observed authority requirements
| EMC | 2014/30/EU |
| LVD | 2014/35/EU |
| ATEX | 2014/34/EU |
| RoHS | 2011/65/EU |
| EAC | TR-CU 020/2011 |
| EAC Ex | TR-CU 012/2011 |
Approvals
| ATEX | DEMKO 99ATEX124571, II (1) GD [EEx ia] IIC |
| EAC Ex | RU C-DK.HA65.B.00355/19 |
| DNV Marine | TAA0000101 |
