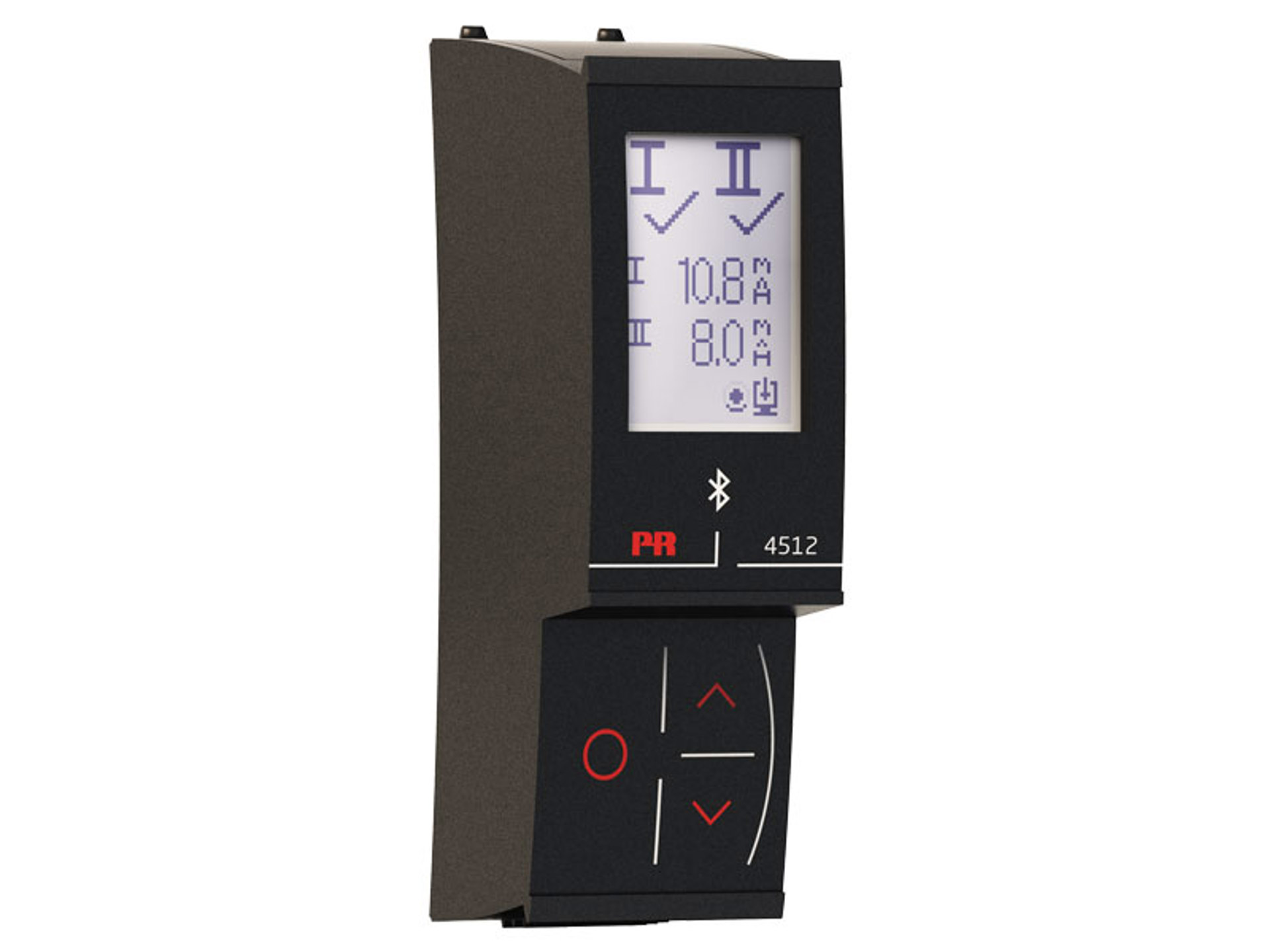

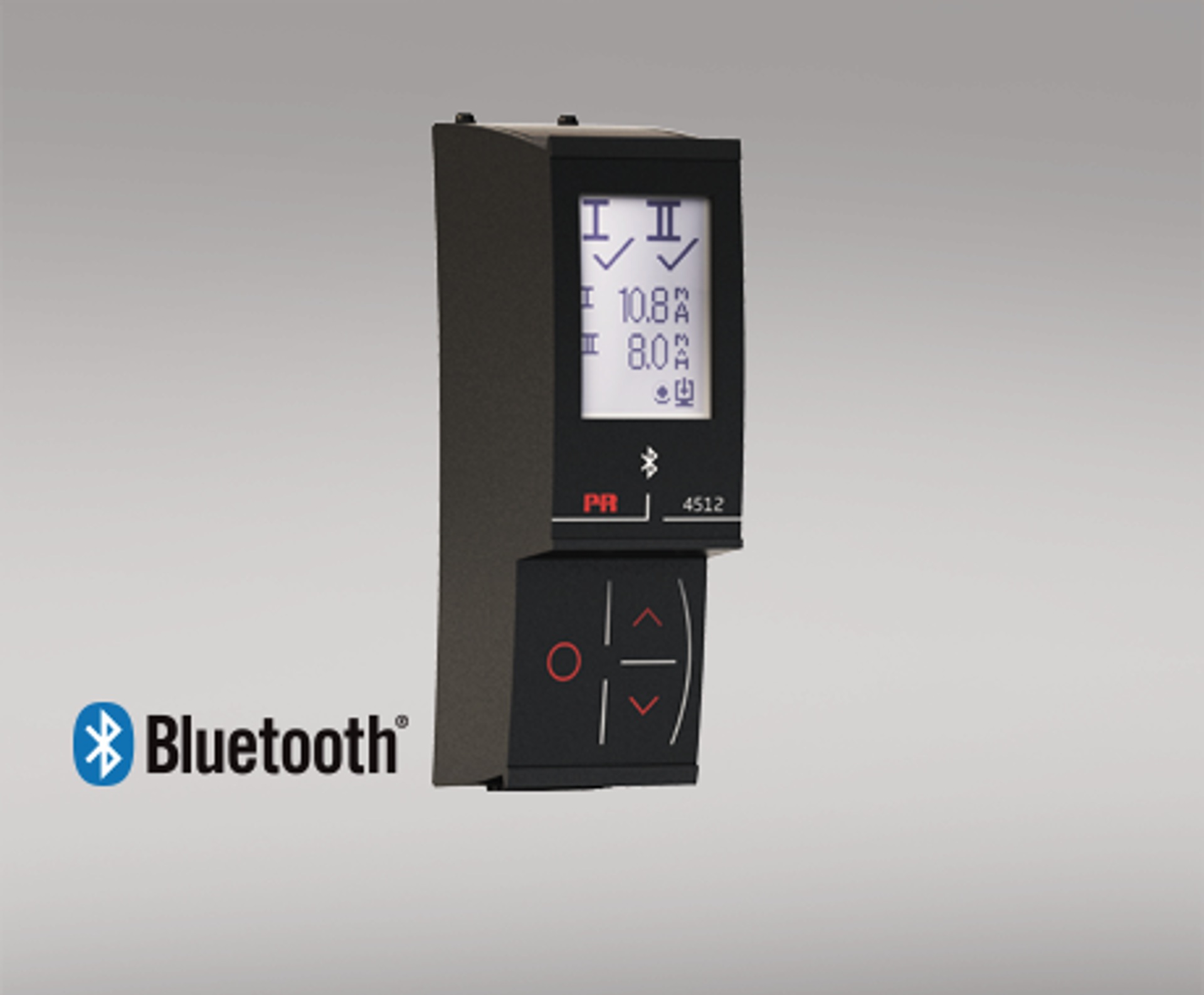

Bluetooth communication enabler
4512
- Bluetooth communication between the PR 4000 and 9000 devices and iOS/Android devices
- Live monitoring of process values and diagnostics on compatible smart devices or directly on the PR 4512
- Advanced data logging and event logging using the built-in real-time clock
Applications
- Program devices via Bluetooth using an iOS/Android device running the free PPS app (PR Process Supervisor).
- Use PPS data for preventive maintenance.
- All logged data can be exported in .csv format, for advanced data analysis off-site.
- On-site analysis of real-time process data on an iOS/Android compatible device.
- Off-site analysis of historic process data on a PC using PReset.
Technical characteristics
- PR 4512 runs Bluetooth 4.2, and requires a smart device with 4.0 or newer.
- PPS is compatible with iOS and Android devices.
- The PR 4512 automatically detects the device setting on the connected PR 4000 and 9000 device.
- An internal battery energizes the 4512 real-time clock for at least 2 years, should the 4512 remain de-energized.
- Typical data logging capacity is more than 30 days at 1 second intervals.
- Easy to read dot matrix LCD display.
- Fast pairing or safe pairing via two-factor authentication.
Mounting / installation / programming
- Mounting in Zone 2 / Div. 2.
- The 4512 can be moved from one device to another. The individual system 4000/9000 device configuration of a transmitter can be saved and downloaded to subsequent transmitters.
- Programmed parameters can be protected by a user-defined password.
- When mounted on devices that are installed upside down, a menu selection rotates the 4512 display 180 degrees and reverses the up/down button functions.
- All data, including configuration, data log and event log from a PR 4000 / 9000 device can be transferred to a PC using the PR 4590.
- Please find an updated list of countries who have approved the use of 4512 at: www.prelectronics.com/4512-bluetooth-approvals/
Data sheet & Manuals
Data sheet
- 4512.pdf
- Latest version
Manuals
- 4512V103_UK.pdf
- 4512V102_UK.pdf
- 4512V101_UK.pdf
- 4512V100_UK.pdf
- Previous versions
- Latest version
Manuals in Russian
- 4512V103_RU.pdf
- 4512V102_RU.pdf
- 4512V101_RU.pdf
- 4512V100_RU.pdf
- Previous versions
- Latest version
Approvals & Certificates
ATEX certificate
- 4512_issue4.pdf
- Latest version
IECEx certificate
- 4512IEC_issue3.pdf
- Latest version
UKEX certificate
- 4512UKEX_Issue 0.pdf
- Latest version
FM certificate
- 4512_FM18US0268X_FM18CA0129X.pdf
- Latest version
Bluetooth certificate Australia
- BT_Australia_4512_issue01.pdf
- Latest version
Bluetooth certificate Brazil
- Anatel_Brazil_4512_issue01.pdf
- Latest version
Bluetooth certificate China
- SRRC_China_4512_issue01.pdf
- Latest version
Bluetooth certificate Peru
- BT_Peru_4512_issue01.pdf
- Latest version
Bluetooth certificate Singapore
- BT_Singapore_4512_2020.pdf
- Latest version
Bluetooth certificate Malaysia
- BT_Malaysia_4512_2020.pdf
- Latest version
EAC declaration
- EAC-Declaration.pdf
- Latest version
Supplementary documentation
EU Declaration of Conformity
- 4512DoC_EU_102_UK.pdf
- 4512DoC_EU_101_UK.pdf
- 4512DoC_EU_100_UK.pdf
- Previous versions
- Latest version
UKCA Declaration of Conformity
- 4512DoC_UKCA_100_UK.pdf
- Latest version
Supplemental information
- 4512_PPS_Supplemental_information_1.0.pdf
- Latest version
PR 4512 data logging capacity
- 4512_Data_logging_capacity_V1R0.pdf
- Latest version
Safety note
Safety note
- SN4500_105_2239.pdf
- SN4512_101_2119.pdf
- SN4512_100_2007.pdf
- Previous versions
- Latest version
Download Software
Order form
Environmental Conditions
| Operating temperature | -20°C to +60°C |
| Storage temperature | -20°C to +85°C |
| Relative humidity | < 95% RH (non-cond.) |
| Protection degree | IP20 |
| Installation in | Pollution degree 2 & meas. / overvoltage cat. II |
Mechanical specifications
| Dimensions (HxWxD) | 73.2 x 23.3 x 26.5 mm |
| Dimensions (HxWxD) w/ 4000/9000 unit | 109 x 23.5 x 131 mm |
| Weight approx. | 30 g |
Common specifications
Supply |
|
| Supply voltage | 6.5...20 V supplied from host 4000 / 9000 device |
| Max. required power | 0.15 W |
Data logging |
|
| Memory | 100 MB |
| Capacity | > 2.75 million data points (depending on the connected PR device) |
| Data retention, without power | ~ 10 years |
| Extended EMC immunity: NAMUR NE21, A criterion, burst | No loss of communication |
| Internal battery back-up (for real-time clock) | 2 years (@ 25°C) |
| Calibrated clock accuracy | <±60 s/year @ 25°C |
| Bluetooth communication | BLE 4.2 |
| Bluetooth radio | Class 2 |
I.S. / Ex marking
| ATEX | II 3 G Ex ec IIC T5 |
| IECEx | Ex ec IIC T5 Gc |
| FM, US | Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, Grp IIC T5 |
| FM, CA | Cl I, Div 2, Gp A, B, C, D T5 |
Observed authority requirements
Directives |
|
| EMC | 2014/30/EU & UK SI 2016/1091 |
| ATEX | 2014/34/EU & UK SI 2016/1107 |
| RED | 2014/53/EU & UK SI 2017/1206 |
| RoHS | 2011/65/EU & UK SI 2012/3032 |
Standards |
|
| Standard for Safety | ANSI/ISA 61010-1 : 2004 |
Bluetooth |
|
| Europe, CE | 117-37823-1 |
| USA, FCC | ID QoQBGM111 |
| Canada, IC | 5123A-BGM111 |
| China, SRRC | 2018DJ6574 |
| Australia, RCM | 42 004 182 772 |
| Brazil, Anatel | 06541-18-11723 |
| Japan, MIC | R 209-J00192 |
| Korea, KC | MSIP-CRM-BGT, BGM111 |
| Malaysia, SIRIM QAS | RAHY/63M/1020/S(20-4544) |
| Singapore, IMDA | N1861-20 |
| EAC | TR-CU 020/2011 |
Approvals
| ATEX | DEKRA 13ATEX0098 X |
| IECEx | DEK 13.0026 X |
| UKEX | DEKRA 21UKEX0167X |
| c FM us | FM18US0268X / FM18CA0129X |
